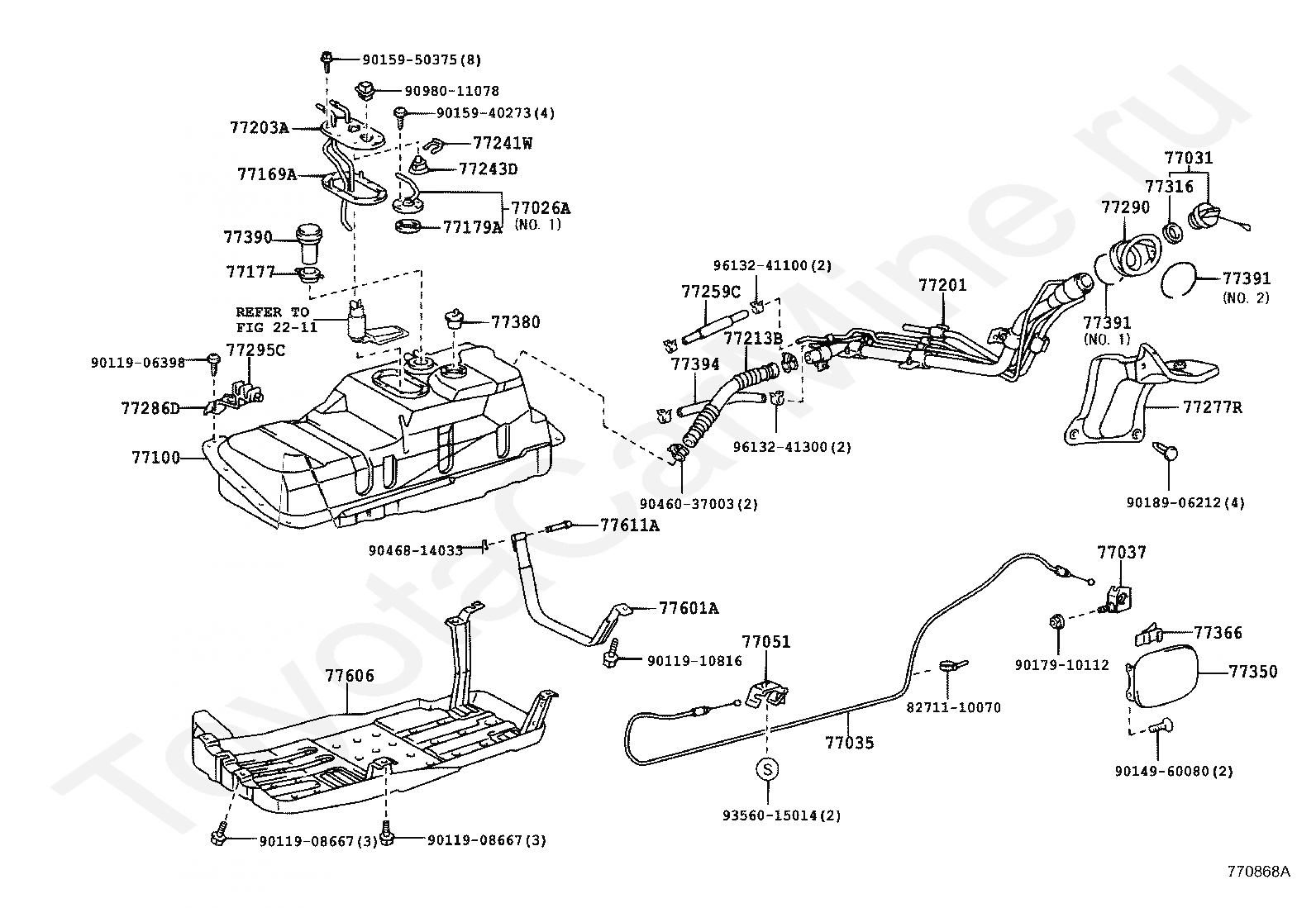

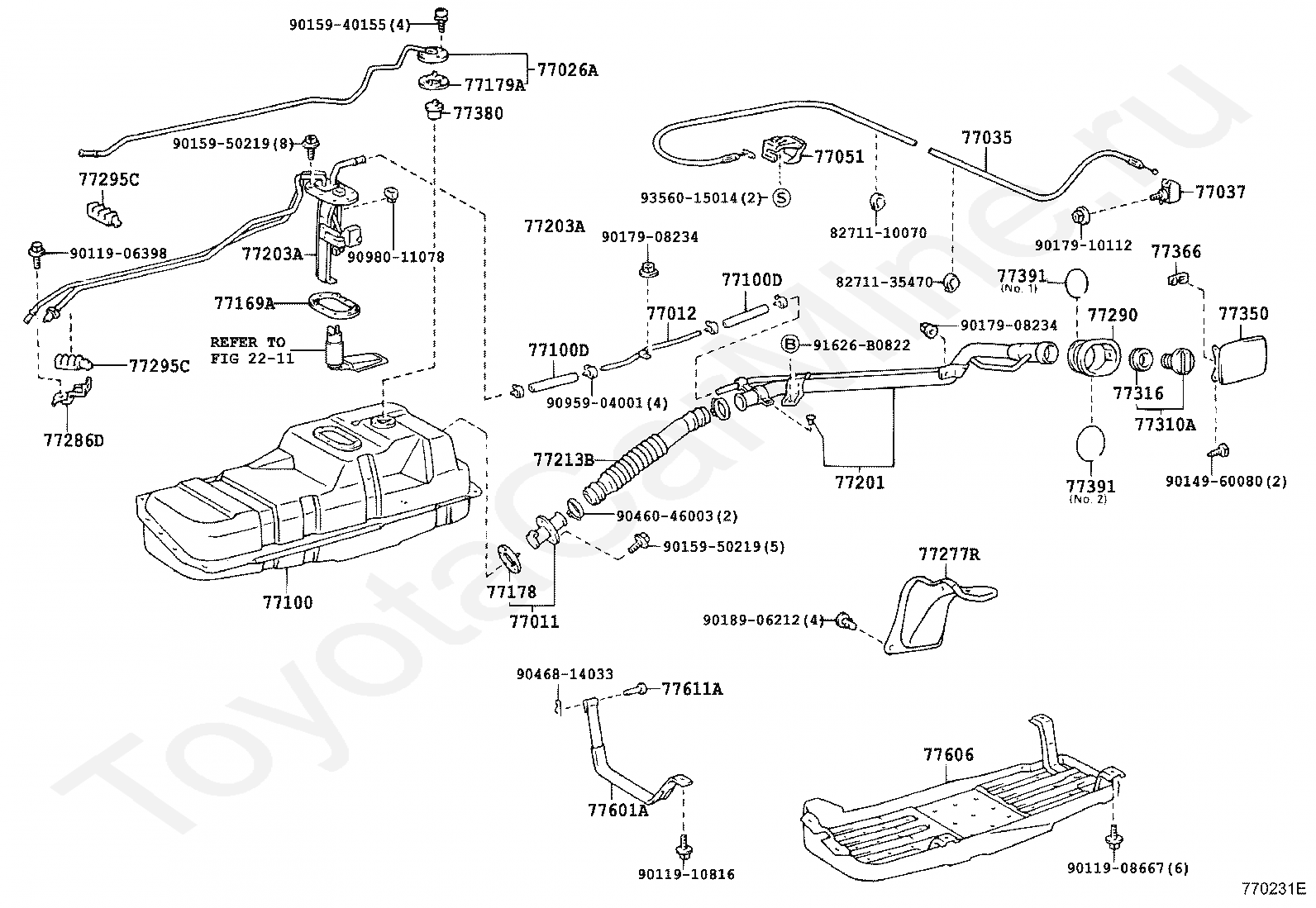

Топливный бак и горловина TOYOTA 4RUNNER, 1995/11 - 2002/08, 3,4 литра, EFI, SR5-V6 TYPE(-0008),SR5 TYPE(0008-), VZN185, автомат, АКПП, 4 ступени

Каталог

Европа

Модель

4RUNNER

Двигатель

3,4 литра, EFI

Класс

SR5-V6 TYPE(-0008),SR5 TYPE(0008-)

Фрейм

VZN185

Трансмиссия

автомат АКПП, 4 ступени

Опции

Код

Описание

2211

переход к группе запчастей

77011

PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

77012

TUBE SUB-ASSY, FUEL TANK BREATHER

77026A

TUBE SUB-ASSY, FUEL EVAPORATION, NO.1

77035

CABLE SUB-ASSY, FUEL LID LOCK CONTROL

77037

LOCK SUB-ASSY, FUEL FILLER OPENING LID

77051

LEVER SUB-ASSY, FUEL LID OPEN

77100

TANK ASSY, FUEL

77100D

HOSE, FUEL, NO.1(FOR FUEL TANK)

77169A

GASKET, FUEL SUCTION TUBE SET

77178

GASKET, FUEL TANK FILLER PIPE, LOWER

77179A

GASKET, FUEL TANK BREATHER TUBE

77201

PIPE SUB-ASSY, FUEL TANK INLET

77203A

TUBE SUB-ASSY, FUEL SUCTION

77213B

HOSE, FUEL TANK TO FILLER PIPE

77277R

PROTECTOR, FUEL TANK FILLER PIPE

77286D

CLAMP, FUEL TUBE, NO.2

77290

SHIELD ASSY, FUEL TANK FILLER PIPE

77295C

GROMMET, FUEL TUBE

77310A

CAP ASSY, FUEL TANK

77316

GASKET, FUEL TANK CAP

77350

LID ASSY, FUEL FILLER OPENING

77366

SPRING, FUEL FILLER OPENING LID HINGE

77380

VALVE ASSY, FUEL CUT OFF

77391

RING, FUEL INLET BOX

77601A

BAND SUB-ASSY, FUEL TANK, NO.1

77606

PROTECTOR SUB-ASSY, FUEL TANK, NO.1

77611A

PIN (FOR FUEL TANK BAND)

8271110070

Крепеж

8271135470

Крепеж

9011906398

Крепеж

9011908667

Крепеж

9011910816

Крепеж

9014960080

Крепеж

9015940155

Крепеж

9015950219

Крепеж

9017908234

Крепеж

9017910112

Крепеж

9018906212

Крепеж

9046046003

Крепеж

9046814033

Крепеж

9095904001

Крепеж

9098011078

Крепеж

91626B0822

Крепеж

9356015014

Крепеж

Код

Описание

2211

переход к группе запчастей

77026A

TUBE SUB-ASSY, FUEL EVAPORATION, NO.1

77031

CAP ASSY, FUEL TANK

77035

CABLE SUB-ASSY, FUEL LID LOCK CONTROL

77037

LOCK SUB-ASSY, FUEL FILLER OPENING LID

77051

LEVER SUB-ASSY, FUEL LID OPEN

77100

TANK ASSY, FUEL

77169A

GASKET, FUEL SUCTION TUBE SET

77177

GASKET, CHECK VALVE

77179A

GASKET, FUEL TANK BREATHER TUBE

77201

PIPE SUB-ASSY, FUEL TANK INLET

77203A

TUBE SUB-ASSY, FUEL SUCTION

77213B

HOSE, FUEL TANK TO FILLER PIPE

77241W

CLIP, TUBE JOINT

77243D

JOINT, FUEL TUBE, NO.1

77259C

HOSE, FUEL

77277R

PROTECTOR, FUEL TANK FILLER PIPE

77286D

CLAMP, FUEL TUBE, NO.2

77290

SHIELD ASSY, FUEL TANK FILLER PIPE

77295C

GROMMET, FUEL TUBE

77316

GASKET, FUEL TANK CAP

77350

LID ASSY, FUEL FILLER OPENING

77366

SPRING, FUEL FILLER OPENING LID HINGE

77380

VALVE ASSY, FUEL CUT OFF

77390

VALVE ASSY, FUEL TANK INLET

77391

RING, FUEL INLET BOX

77394

HOSE, VALVE TO FUEL FILLER PIPE

77601A

BAND SUB-ASSY, FUEL TANK, NO.1

77606

PROTECTOR SUB-ASSY, FUEL TANK, NO.1

77611A

PIN (FOR FUEL TANK BAND)

8271110070

Крепеж

9011906398

Крепеж

9011908667

Крепеж

9011910816

Крепеж

9014960080

Крепеж

9015940273

Крепеж

9015950375

Крепеж

9017910112

Крепеж

9018906212

Крепеж

9046037003

Крепеж

9046814033

Крепеж

9098011078

Крепеж

9356015014

Крепеж

9613241100

Крепеж

9613241300

Крепеж

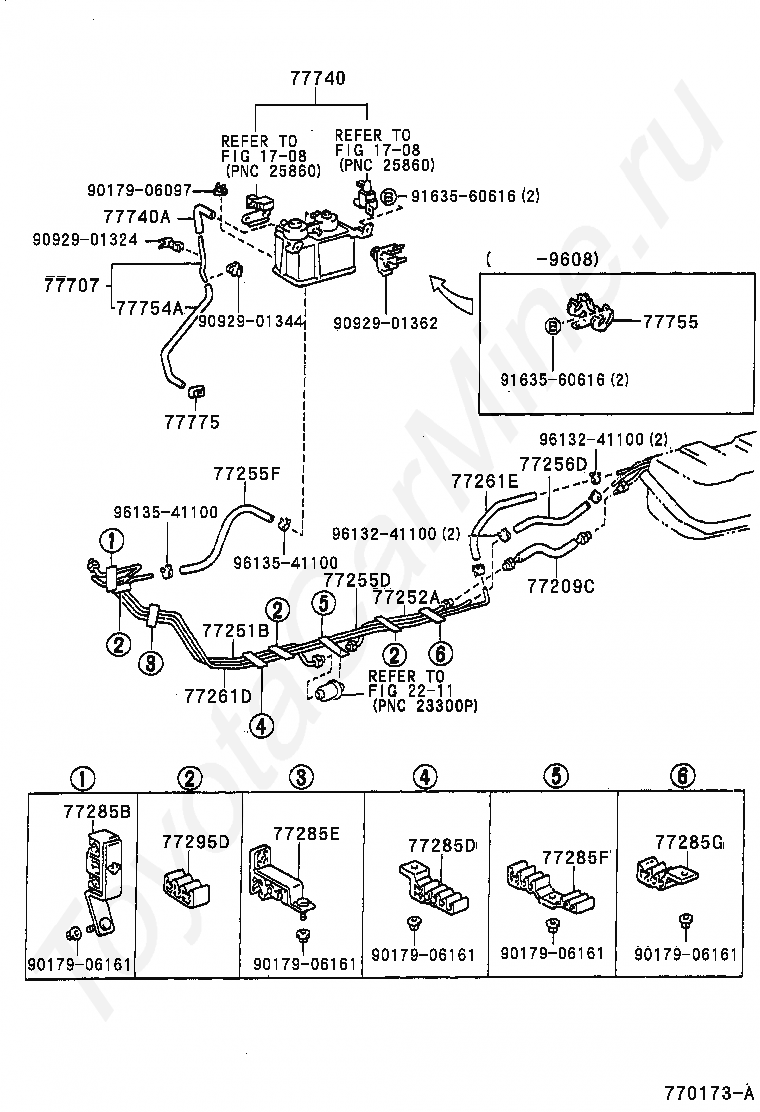

Код

Описание

1708

переход к группе запчастей

2211

переход к группе запчастей

77209C

TUBE SUB-ASSY, FUEL TANK MAIN

77251B

TUBE, FUEL MAIN

77252A

TUBE, FUEL MAIN, NO.2

77255D

TUBE, FUEL RETURN

77255F

HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)

77256D

HOSE, FUEL, NO.1 (FOR FUEL RETURN NO.2 TUBE)

77261D

TUBE, FUEL TANK TO CANISTER

77261E

HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE)

77285B

CLAMP, FUEL TUBE W/GROMMET, NO.1

77285D

CLAMP, FUEL TUBE, NO.1

77285E

CLAMP, FUEL TUBE W/GROMMET, NO.1

77285F

CLAMP, FUEL TUBE, NO.1

77285G

CLAMP, FUEL TUBE, NO.1

77295D

GROMMET, FUEL TUBE

77707

TUBE SUB-ASSY, CHARCOAL CANISTER OUTLET

77740

CANISTER ASSY, CHARCOAL

77740A

HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)

77754A

HOSE, CHARCOAL CANISTER OUTLET, NO.2

77755

BRACKET, CHARCOAL CANISTER OUTLET HOSE

77775

GUIDE, CHARCOAL CANISTER OUTLET

9017906097

Крепеж

9017906161

Крепеж

9092901324

Крепеж

9092901344

Крепеж

9092901362

Крепеж

9163560616

Крепеж

9613241100

Крепеж

9613541100

Крепеж

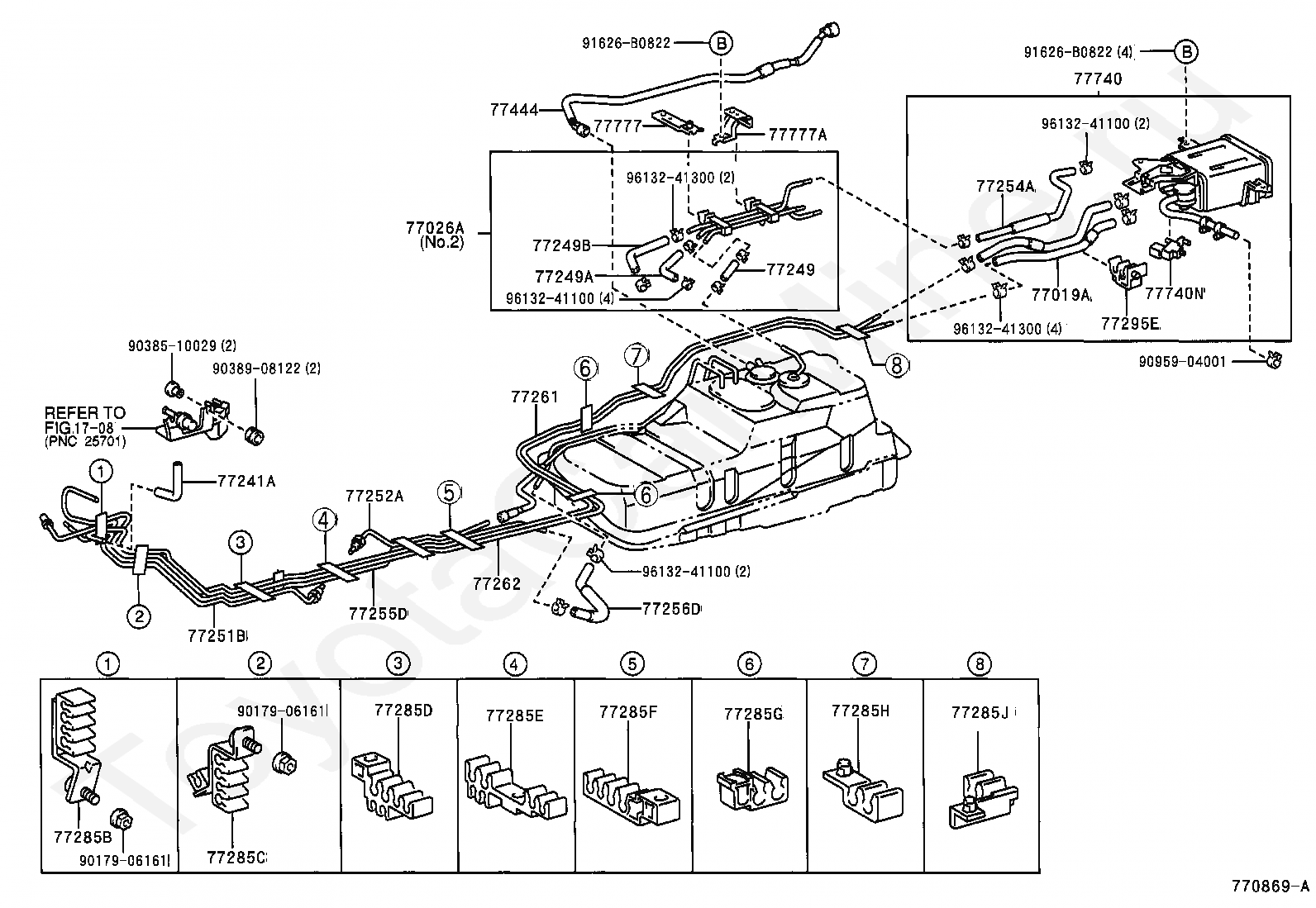

Код

Описание

1708

переход к группе запчастей

77019A

HOSE, FUEL, NO.1(FOR FUEL EXPANSION TANK)

77026A

TUBE SUB-ASSY, FUEL EVAPORATION, NO.1

77241A

HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)

77249

HOSE, FUEL EMISSION

77249A

HOSE, FUEL EMISSION

77249B

HOSE, FUEL

77251B

TUBE, FUEL MAIN

77252A

TUBE, FUEL MAIN, NO.2

77254A

HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1)

77255D

TUBE, FUEL RETURN

77256D

HOSE, FUEL, NO.1 (FOR FUEL RETURN NO.2 TUBE)

77261

TUBE SUB-ASSY, FUEL EMISSION

77262

TUBE, FUEL EMISSION, NO.2

77285B

CLAMP, FUEL TUBE W/GROMMET, NO.1

77285C

CLAMP, FUEL TUBE, NO.1 (FOR FRONT FUEL MAIN)

77285D

CLAMP, FUEL TUBE, NO.1

77285E

CLAMP, FUEL TUBE W/GROMMET, NO.1

77285F

CLAMP, FUEL TUBE, NO.1

77285G

CLAMP, FUEL TUBE, NO.1

77285H

CLAMP, FUEL TUBE, NO.1

77285J

CLAMP, FUEL TUBE, NO.1

77295E

GROMMET, FUEL TUBE

77444

HOSE, FUEL TANK VENT

77740

CANISTER ASSY, CHARCOAL

77740N

VALVE, VACUUM SWITCHING(FOR CHARCOAL CANISTER)

77777

BRACKET, FUEL TUBE CLAMP

77777A

BRACKET, FUEL TUBE CLAMP (FOR FRONT FUEL MAIN)

9017906161

Крепеж

9038510029

Крепеж

9038908122

Крепеж

9095904001

Крепеж

91626B0822

Крепеж

9613241100

Крепеж

9613241300

Крепеж

Топливный бак и горловина TOYOTA 4RUNNER, 1995/11 - 2002/08, 3,4 литра, EFI, SR5-V6 TYPE(-0008),SR5 TYPE(0008-), VZN185, автомат, АКПП, 4 ступени
